When the Ultrasonic Bark Collar is within range of a barking dog. The sensitive component – Microphone will pick up the sound, the unit is automatically activated. The bark collar emits an ultrasonic sound. The ultrasonic sound can be heard by dogs but is silent to humans. Startled by the high-pitched sound that is safe and effective, the dog will stop barking, as it will associate its bark with this unpleasant noise. When the dog stops barking the ultrasonic sound also stops. The Ultrasonic Bark Collar provides you with an effective and humane tool to train your pets to stop barking faster and better.
1. Uses ultrasonic sound to deter unwanted barking
2. Detects the sound of barking up to 15 meters
3. 4 levels of operation including test mode, 3 range levels, On/Off switch
4. Durable and weatherproof for outdoor use.
5. LED power indication
Two-color LED: Shows good or low battery.
Good battery: The Green Led will flash 1 time per 5 seconds;
Low battery: The Red Led flash 1 time every 1 second. When emitting the ultrasonic sound, The Red Led is solid.
Microphone: Used to detect barking
Sound Activated Speaker: Produces the ultrasonic sound
Switch with 4 Levels of Operation :
Off – Used to bark collar power off
T — Used to verify the microphone and speaker functional
1 = Low Range – Up to 5 meters
2 = Medium-Range – Up to 10 meters
3 = High Range – Up to 15 meters
How to use it:
1. Installation and Setup
The Ultrasonic Bark Collar should be placed facing the dog and within range of the dog.
It should be positioned at a height of no more than 1.5 meters. It can be placed in a tree, hanging from a pole, on a fence post, etc. For best results, the area between the Ultrasonic Bark Collar and the dog should be free of any large obstacles.

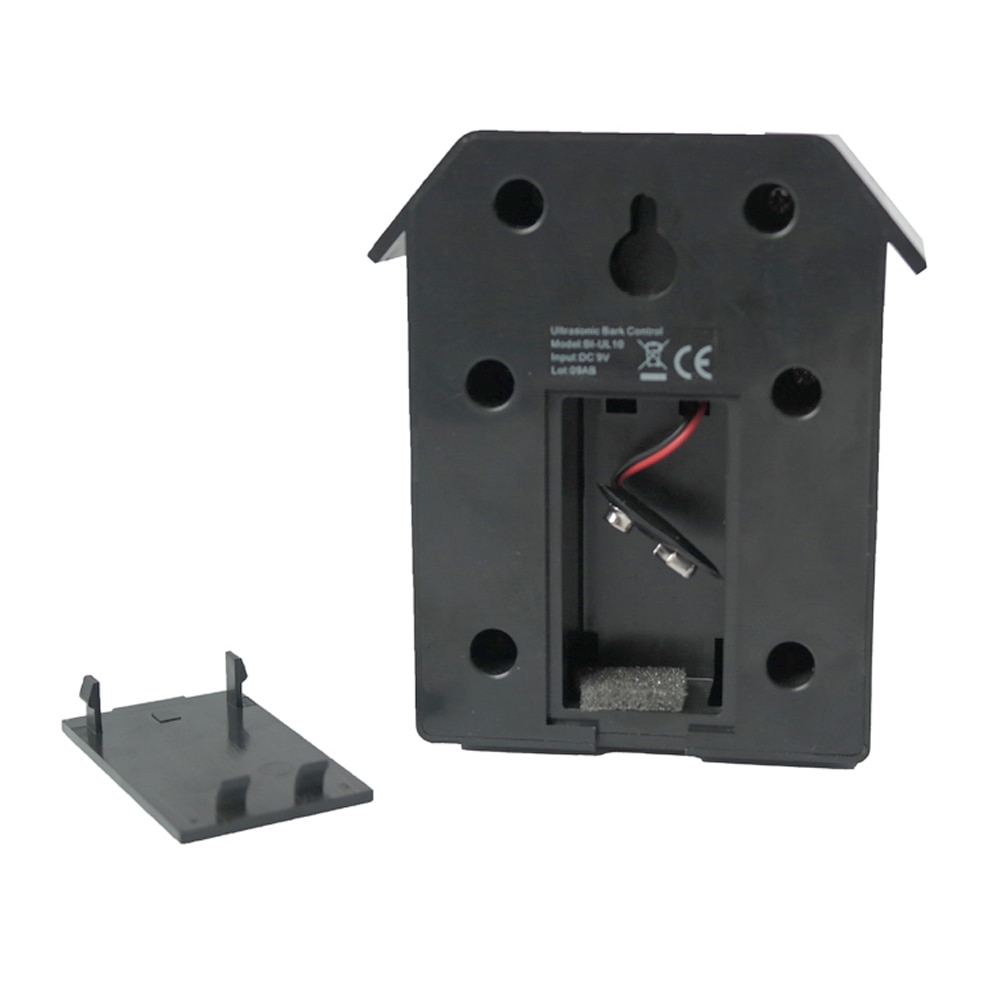

The Ultrasonic Bark Collar utilizes a replaceable 9Volt battery. The battery is goodThe green LED flash 1 time per 5 seconds. If the battery is low, The LED flash frequently. If there is no LED light it is time to change the battery. Open the battery door to replace the battery.
3.Modes of Operation
Begin use of the Ultrasonic Bark Collar with Low Range (“1″) mode, if the dog does not respond, increase to the Medium Range (2”).
IF the dog does not respond to the Medium Range (“2”), increase to High Range (“3”)
Turn to the Test mode to verify the Ultrasonic Bark Collar work properly.
4.Test the Ultrasonic Bark Collar
Turn the Mode Switch to “T”
Hold the unit with the Indicator Light towards you. The unit should be arm’s length away from your mouth In order to activate the unit, say “Woof” loudly towards the Microphone.
The LED light will flash red and there will be an audible sound to indicate that it is functioning
properly. Return the Mode Switch to Low Range “1”, before you begin using the ultrasonic bark collar
1*Ultrasonic bark house(without battery)
Note: This listing does not including the battery inside.
